Rotel Michi M8 Monoblock Power Amplifier
The stunning control and authoritative power of the Rotel Michi M8 Monoblock Amplifier is the result of a perfect balance of science meets art delivering 1,080 watts of Class AB power into 8 ohms and an astounding 1,800 watts to the most demanding 4 ohm loudspeakers.

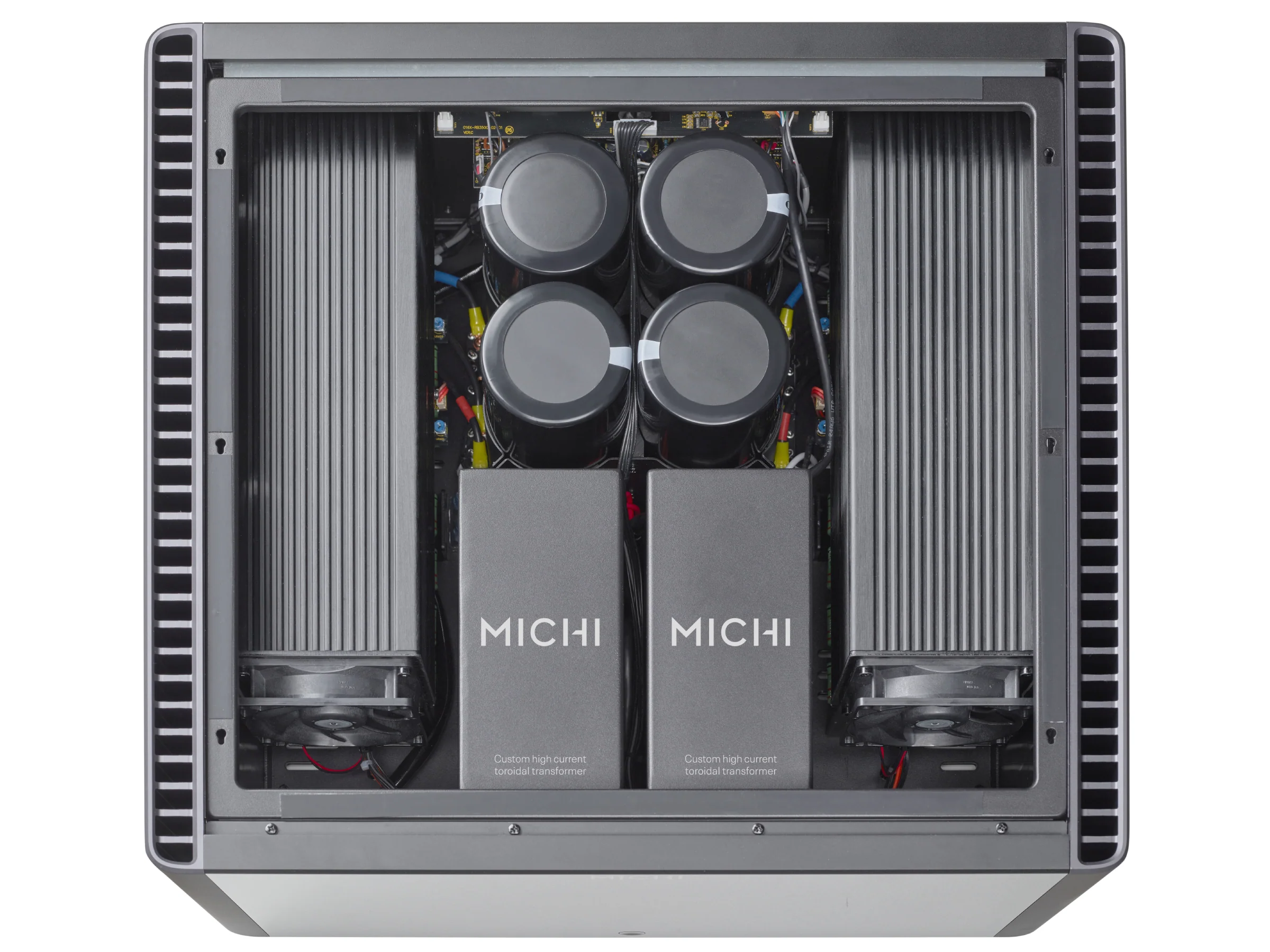

The M8 is powered by a pair of custom engineered, low noise, in-house manufactured toroidal transformers supported by 4 British patented slit foil, high efficiency, low ESR bulk storage capacitors for impactful bass with exceptional control under extreme loading conditions.
To achieve accuracy and its unsurpassed performance, the M8 is equipped with an array of 32 high current output transistors thus reducing the load on individual components and maintaining the crucial energy, rhythm and timing throughout
the amplification stages. Musical expression and detailed refinement were further accomplished through acoustic tuning of all critical components and a balanced circuit design.

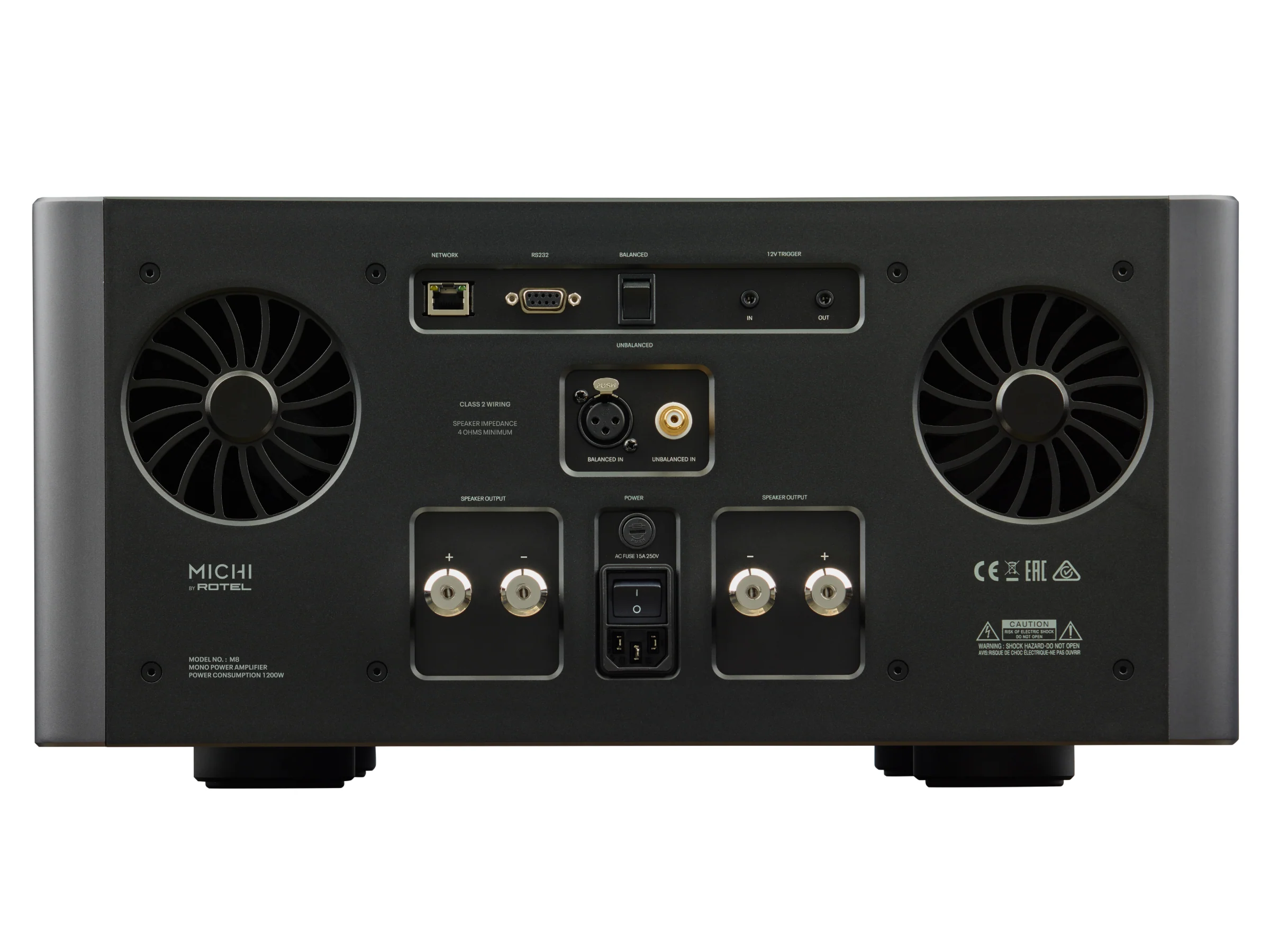

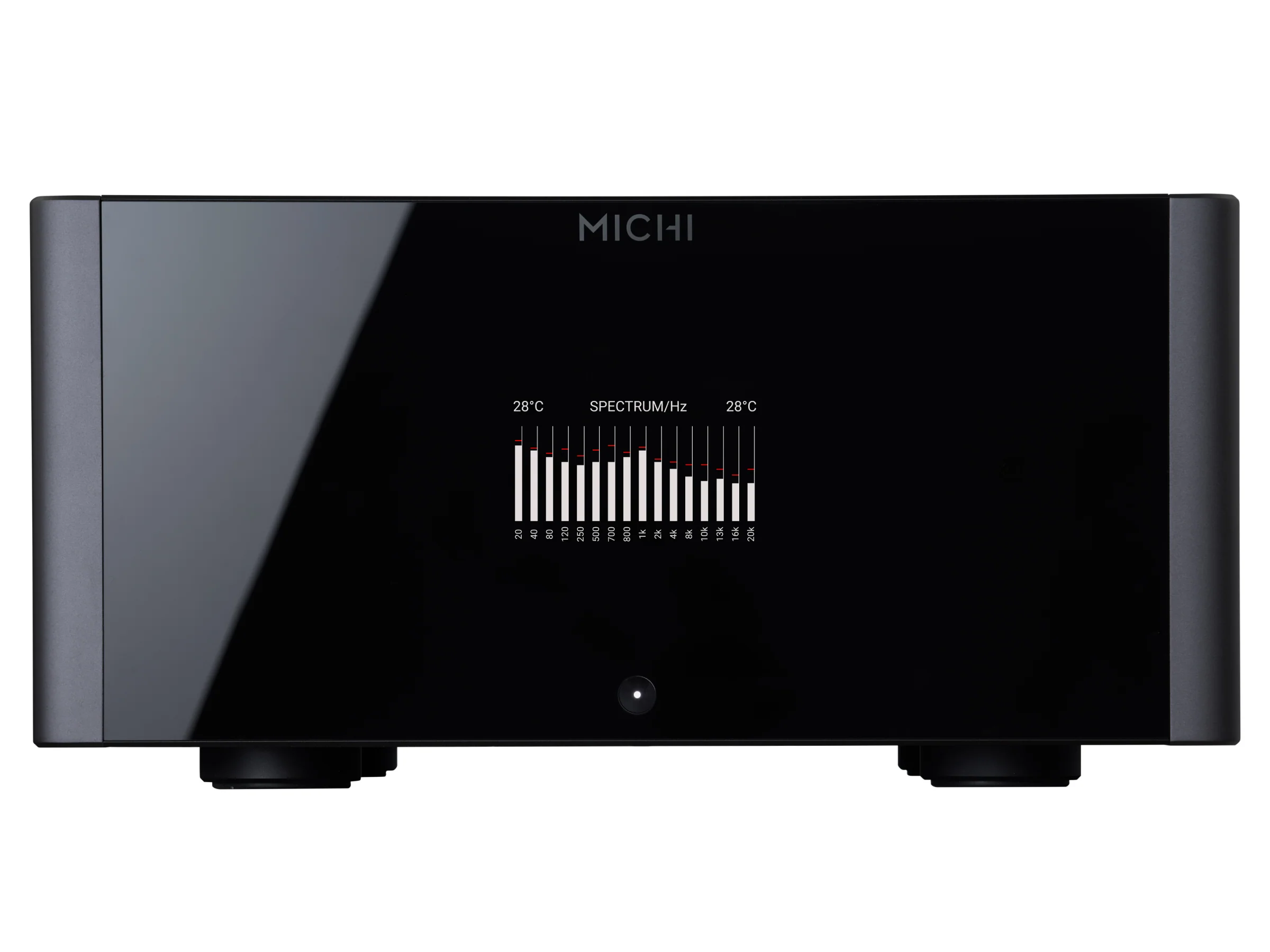

A high resolution display adorns the front panel supporting a peak power meter or spectrum analyzer. With XLR and RCA inputs, 2 sets of custom Michi speaker binding posts, remote control and fully featured RS232 and Ethernet connections the M8 provides ultimate installation flexibility. Power amplification at its best in the most elegant of industrial designs.
Specifications
| BTU Rating (4Ω, 1/8th power): | 3200 BTU/h |
| Continuous Power Output: | 1080W/Ch (8Ω) 1800W/Ch (4Ω) |
| Total Harmonic Distortion (THD): | <0.018% |
| Frequency Response: | 20Hz - 20kHz (+0dB, -0.15dB) 10Hz - 100kHz (+0dB, -0.5dB) |
| Gain: | Unbalanced (RCA): 34dB Balanced (XLR): 30dB |
| Dimensions (W × H × D): | 485 × 238 × 465mm (19" × 9.375" × 18.25") |
| Front Panel Height: | 220mm (8.625") |
| Power Requirements: | 120V, 60Hz |
| Power Consumption: | 1200W |
| Standby Power Consumption: | 1200W |
| Net Weight: | 59.1kg (130.3lbs.) |
