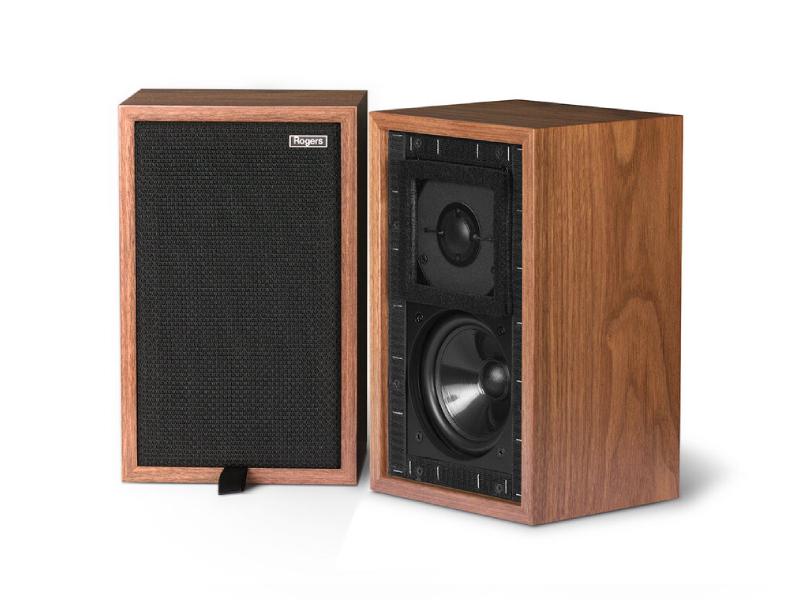

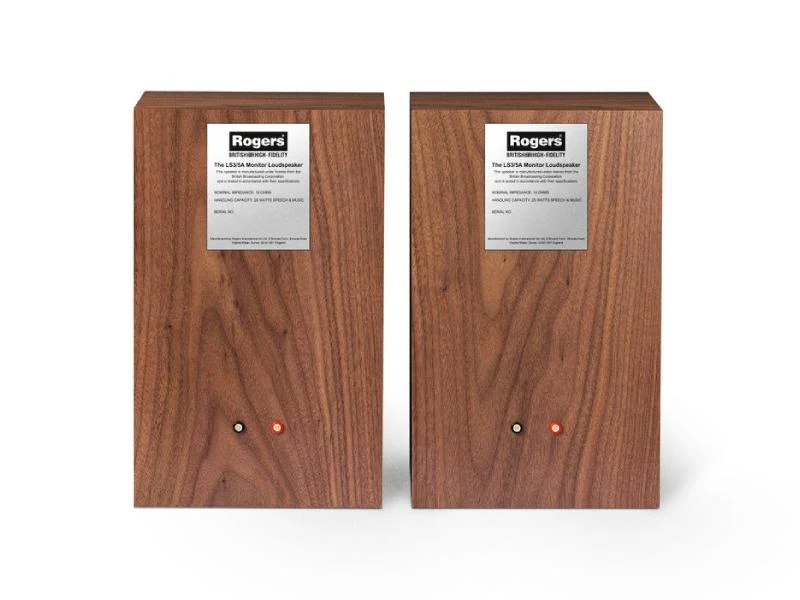

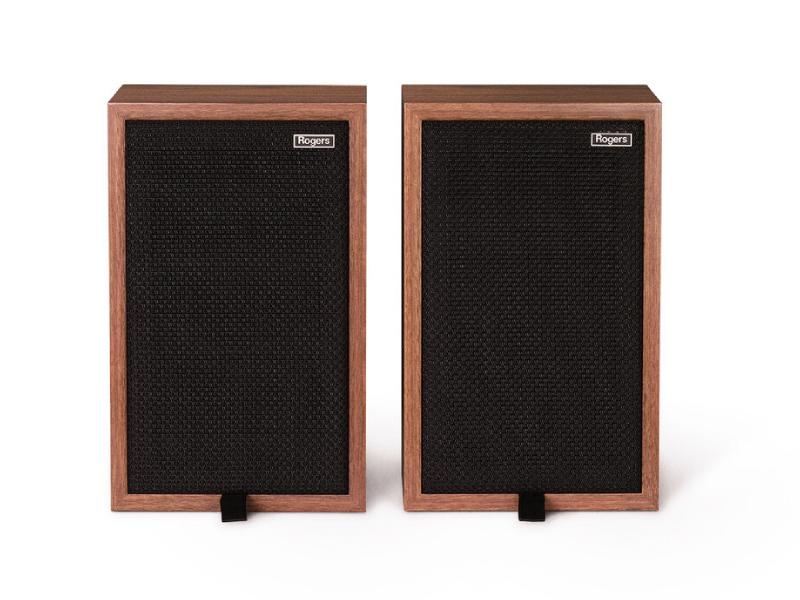

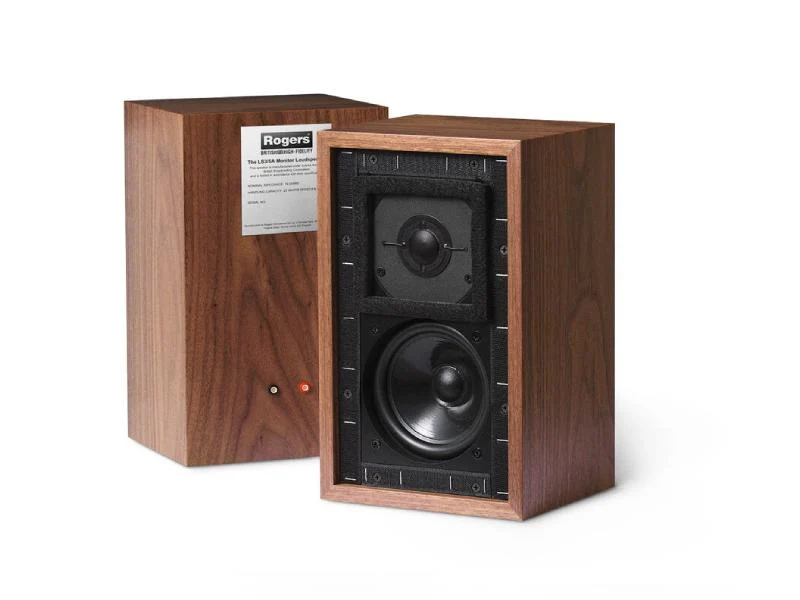

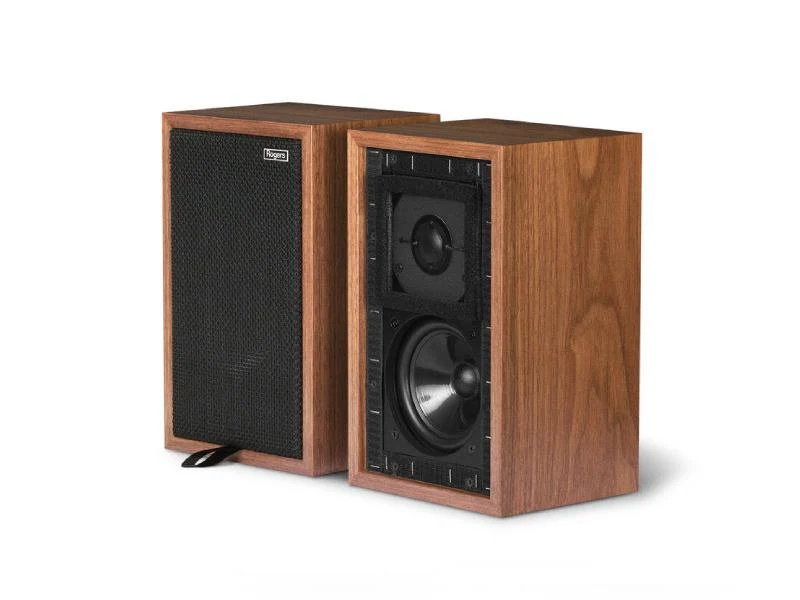

Rogers LS3/5a Classic BBC Licensed Loudspeaker

Rogers International UK Ltd are pleased to introduce the Reborn Rogers LS3/5a Classic 15 Ohm speaker. Having previously manufactured over 50,000 pairs of LS3/5a’s, Rogers are now once again manufacturing this landmark speaker in the UK, under licence and  tested in accordance with their specification.

· Critically damped 12mm Russian birch ply enclosure
· Hardwood beech fillets
· Balanced real wood veneers
· 12mm birch ply baffle
· Tygan grille
· Walnut, Rosewood, and Olive finishes as standard
· Special finishes to order

· Single layer one ounce copper track fiberglass PCB
· M6 laminated transformer cored crossover inductors
· M6 laminated transformer cored auto transformer (for tweeter level matching)
· High voltage Metalised capacitors
· All components hand soldered with silver solder

· Single wire, 4mm Multi-Contact sockets
· Sockets are silver plated for the best connection
· Choice of beautiful real-wood veneers: rosewood, walnut and olive
· Handmade in the United Kingdom by master-craftsman

LS3/5a Specifications

· System type: Two way infinite baffle
· Frequency response: 80Hz-20KHz +/-3dB
· Nominal Impedance: 15 Ohms
· Bass/midrange: 110mm Bextrene cone
· Tweeter: 19mm Mylar dome
· Crossover frequency: 3KHz
· Sensitivity: 82.5dB/W/M
· Finish: Walnut, Rosewood and Olive finishes as standard
· Grille: Black Tygan
· Dimensions: 305 x 190 x 165mm (HxWxD)
· Weight: 4.9Kg (each speaker)
· Recommended amplifier range 30-80 Watts
