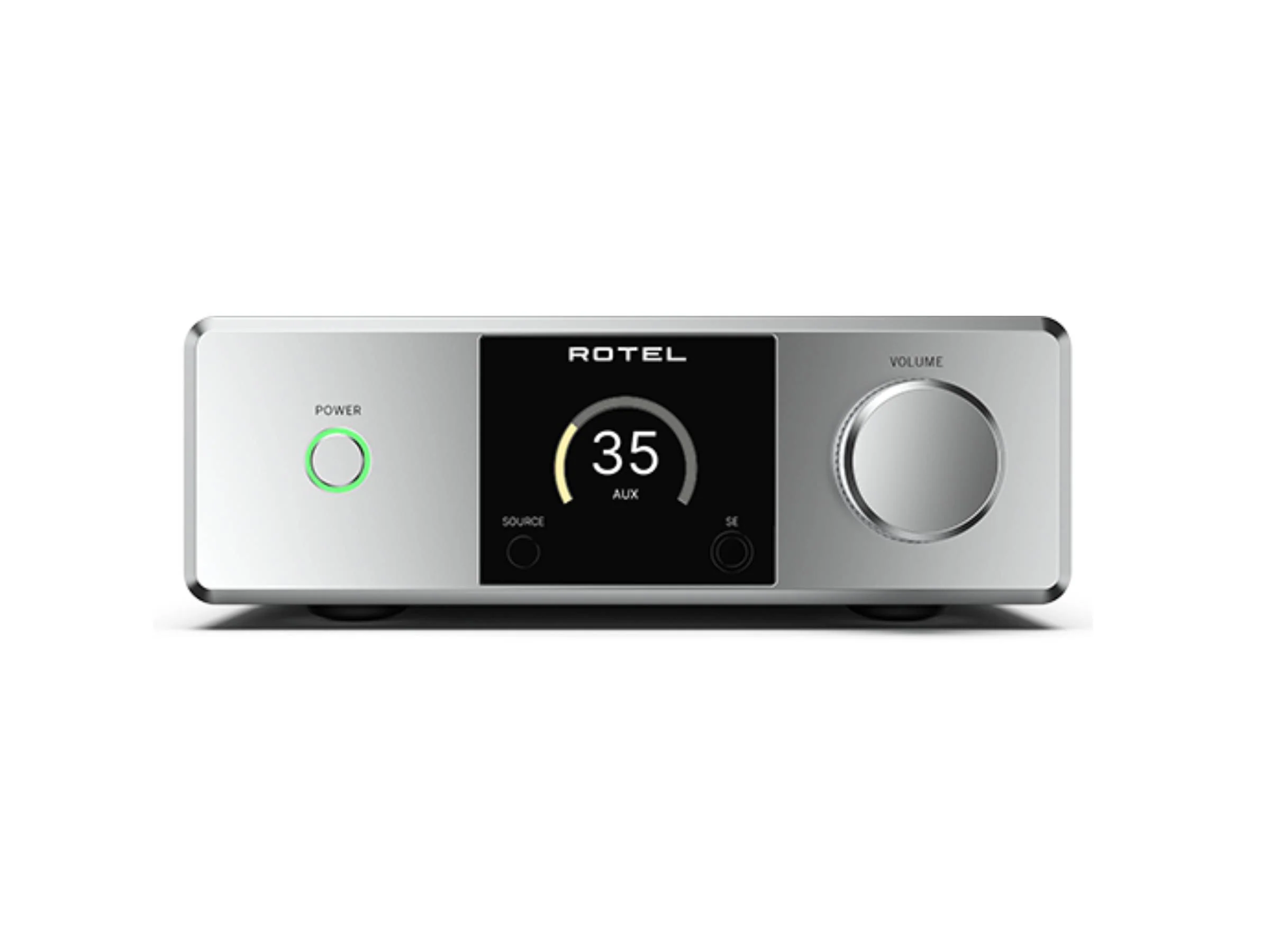

Rotel DX-5 Integrated Amplifier

The Rotel DX-5 is the ultimate high-performance Personal Audio Integrated Amplifier packaged in a sleek, modern, elegant industrial design. Engineered with passion and driven by a precision Class AB amplifier powered by an in-house wound high-current toroidal transformer delivering 33 watts per channel into 4 ohms (25 watts into 8 ohms).



The premium ESS ES9039Q2M DAC renders the audio with precision and exceptional sound quality on an expansive sound stage. It supports PC-USB (32-bit/384kHz PCM, DSD 4x), Coaxial/Optical (24-bit/192kHz), aptX™ HD and AAC Wireless Bluetooth, legacy RCA analog, and HDMI ARC connectivity with CEC and a subwoofer output.

The DX-5 features a full-color TFT display, 1/4” (6.35mm) headphone jack, and includes an intuitive remote control perfect for music lovers and home entertainment enthusiasts.

Specifications

Power Output (FTC):	25 W/ch
Maximum Power Output (Non-FTC):	33 W/ch (4 Ω)
Continuous Power Output (Non-FTC):	25 W/ch (8 Ω)
Total Harmonic Distortion:	< 0.03%
Frequency Response:	10 Hz – 100 kHz (0 ± 0.19 dB)
Damping Factor (20 Hz – 20 kHz, 8 Ω):	140
Input Sensitivity / Impedance:	680 mV / 100 kΩ
Input Overload:	4.2 V
S/N Ratio (IHF "A" Weighted):	>100 dB
Intermodulation Distortion (60 Hz : 7 kHz, 4:1):	< 0.03%
Frequency Response (Digital):	10 Hz – 80 kHz (0 ± 2 dB, Max)
Input Sensitivity / Impedance (Digital):	-10.3 dBFS / 75 Ω
S/N Ratio (Digital, IHF "A" Weighted):	>100 dB
HDMI:	Supports ARC function
Digital Inputs:	SPDIF LPCM (up to 24-bit / 192 kHz)
PC-USB:	USB Audio Class 2.0 (up to 32-bit / 384 kHz)*
DSD Support:	Up to 4× (11.2 MHz)
DoP Support:	Up to 2× (5.6 MHz)
Roon Tested:	Yes
