Vertere Magneto Moving Magnet Cartridge

The Dual Magnet design replicates the structure of the cutter head.

A ‘V’ form two magnet design mimics the Left & Right channel sides of the record groove. This feature, with the permalloy centre shield plate, provides a higher frequency response with electrical crosstalk typically better than 40dB.

The Magneto utilises a finely finished Elliptical stylus to ensure outstanding tracking ability and super quiet tracing of the record groove. Use of laminated Para-toroidal coils with ‘V’ geometry of the magnets also gives rise to higher efficiency in generating the output signal.

The Magneto is an absolutely gem of a cartridge for any starter record playing system.

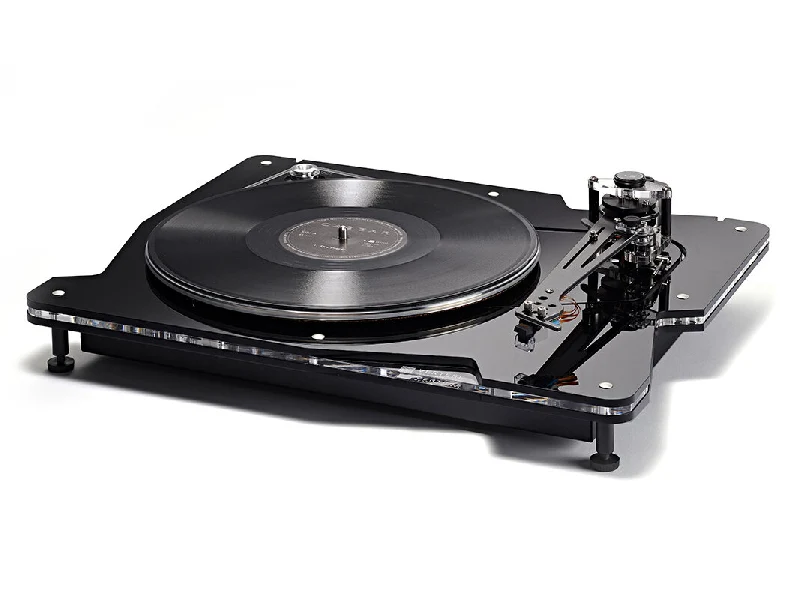

It is factory fitted to Vertere's DG-1 ‘Plug & Play’ Dynamic Groove record player package to provide you with an unparalleled musical performance.

Features

• Replaceable stylus
• Integrated stylus guard
• Stainless steel fixing bolts, washer & hex thumb nuts
• Easy alignment assist marking

Frequency Response:	20 - 23,000Hz
Channel Separation:	27dB (1kHz)
Output Channel Balance:	1.5dB (1kHz)
Output Voltage:	4.0mV (1kHz, 5cm/sec.)
Vertical Tracking Angle:	23˚
Vertical Tracking Force Range:	1.8 – 2.2g (2.0g standard)
Stylus Shape:	Elliptical bonded
Stylus Size:	0.3 x 0.7 mil
Stylus Construction:	Bonded round shank
Cantilever:	Aluminium tube
Coil Resistance:	800Ω (DC)
Static Compliance:	35 x 10⁻⁶ cm/dyne
Dynamic Compliance:	8 x 10⁻⁶ cm/dyne (100Hz)
Recommended Load Impedance:	47,000Ω
Recommended Load Capacitance:	100 – 200pF
Weight:	6.4g
Dimensions:	17.3 (H) x 17.0 (W) x 28.2 (L) mm
